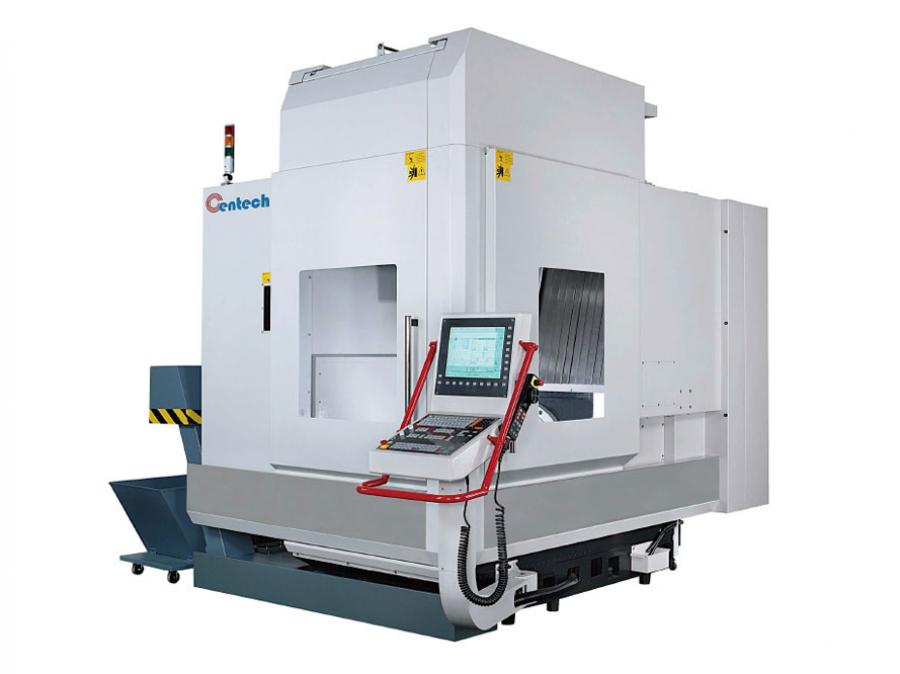

Pětiosé obráběcí centrum Centech XT5.
Standardní vybavení:
- 12000 rpm (direct driven)

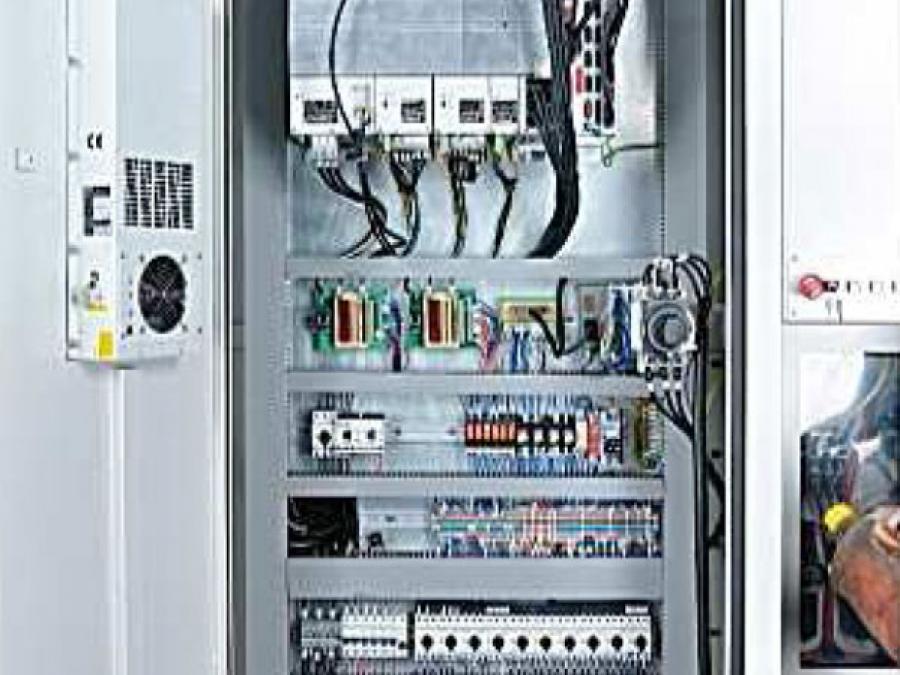

- electrical cabinet with heat exchanger
- RS232 Interface
- Fluorescent Work Light
- Alarm Lamp
- Tool box & Tools
- leveling blocks & bolts
- fully enclosed spash guard
- spindle oil coolant system
- spindle air blast
- lubrication system (proportional pressured)
- auto interrupt & power off system
- operation manual, maintenance manual
- CNC manual / Test report
- chip conveyor
- B/C axis angle encoder
- portable hand wheel (MPG)
- flushing system + water / are gun
Doplňkové vybavení
- 15000 rpm (direct driven)
- 20000 rpm (motorized spindle)
- 30000 rpm (motorized spindle)
- Optical linear scale (X, Y, Z axis)
- oil skimmer (oil water separator)
- coolant through spindle 20 Bar
- heidenhain TT140
- TT740 Kinematic OPT (KKH250)
- CE Certified
| Centech XT5 | hodnoty | jednotky |
|---|---|---|
| TRAVEL | ||
| X, Y, Z | 620 / 520 / 460 | mm |
| DISTANCE | ||
| Spindle nose to table | 140 - 600 | mm |
| Spindle nose to column | 170 | mm |
| WORK TABLE | ||
| Table dimensions | průměr 650 / 750 | mm |
| Max. tabel load | 300 | kg |
| B/C axis rotation | 360° / + 30° - 120° | ° |
| B/C axis angle encoder | ECN 225 | |
| SPINDLE | ||
| Spindle taper | 40 | mm |
| Max. spindle speed | 12000 (15000) | rpm |
| Spindle motor | 10 | kW |
| FEE RATE |
|
|
| Rapid traverse X, Y, Z | 36 | mm/min. |

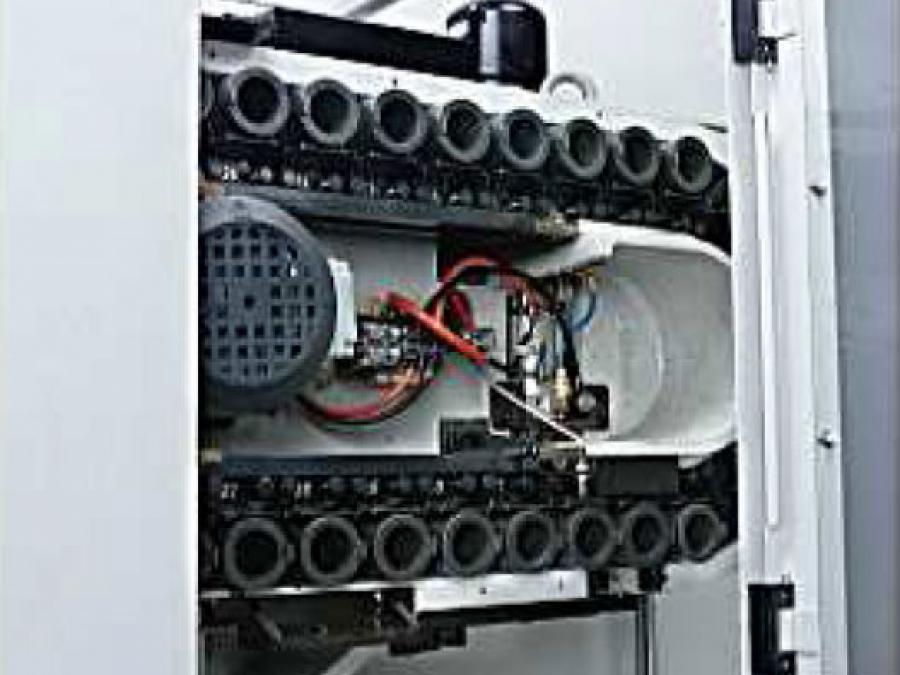

| TOOL MAGAZINE | ||
| Tool capacity | 32 (optional 40) | |
| OTHER | ||
| Machine dimensions | 2600 x 2560 x 2750 | mm |
| Machine net weight | 8000 | kg |
| Electricity demand | 45 | kVA |
